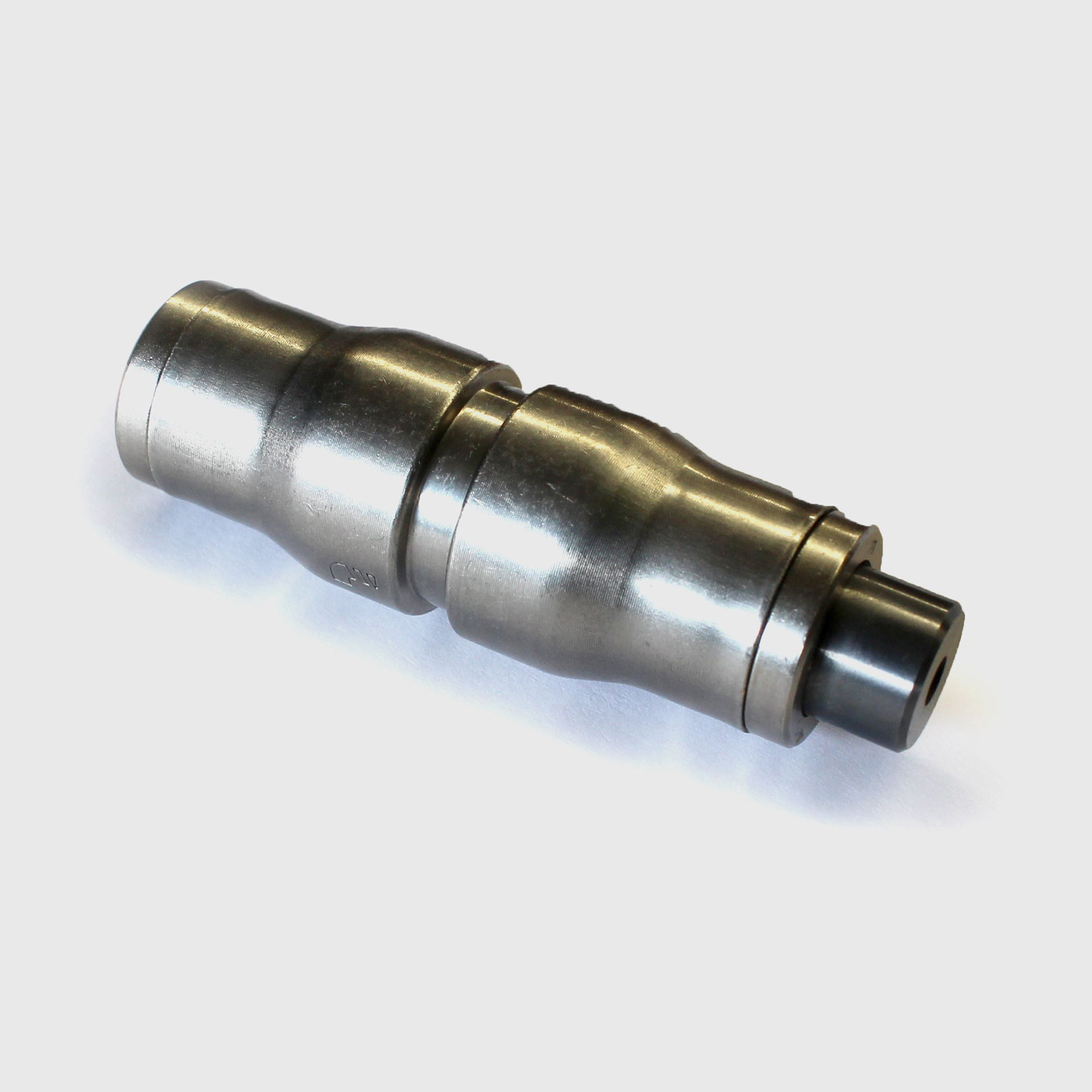

The 1/8 inch (3mm) nozzle has been specially designed for use with the CrystalBlast Pro X2 sandblasting system. This nozzle fits a 3/8 inch (9mm) hose (outside diameter) and has a quick disconnect feature that makes changing the nozzle a breeze. Features: Lasts up to 4-6 times longer than a tungsten nozzle Quick release Easy to change Can be retrofitted to any blast cabinet Nozzle size: 1/8” Material: Composite carbide Hose adapter: 3/8” outer diameter

The 1500W Master Kit has been specially developed for use with the EPSON 1500W printer. The kit contains empty refillable cartridges and UV-proof black Dmax™ Dye ink.Components:6 x refillable cartridges 2 x 127 ml bottles of black Dmax™ Dye ink 1 x syringe with blunt needle 1 x pair of gloves

The 3/32 inch (2mm) nozzle has been specially designed for use with the CrystalBlast Pro X2 sandblasting system. This nozzle fits a 3/8 inch (9mm) hose (outside diameter) and has a quick disconnect feature that makes changing the nozzle a breeze. Features: Lasts up to 4-6 times longer than a tungsten nozzle Quick release Easy to change Can be retrofitted to any blast cabinet Nozzle size: 3/32” Material: Composite carbide Hose adapter: 3/8” outer diameter

Our high tack, water-soluble application adhesive has been specially developed for use with non-self-adhesive sandblasting films on almost all materials. Simply apply a thin layer of the adhesive to the object, stick on the photographic mask and sandblast. Can be used with all our photo-technical sandblasting films. The adhesive also makes it easier to clean the surface after sandblasting. Adhesive residues can be easily removed with cold or warm water without leaving any remains. The application adhesive is available in 0.95 l bottles.

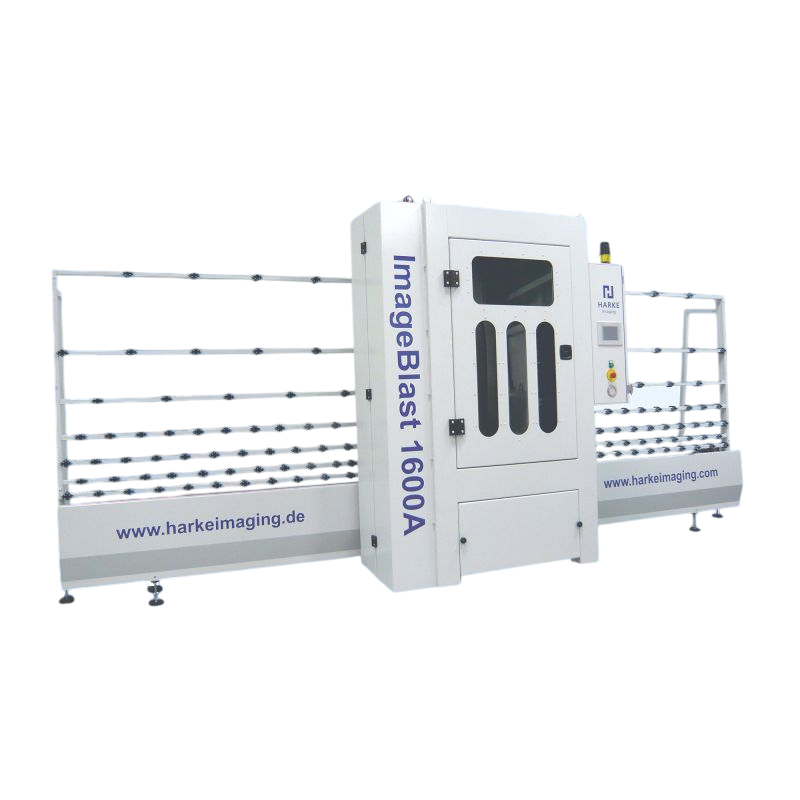

The automatic ImageBlast 1600 - 2600 series sandblasting systems have been specially developed for the fully automatic sandblasting of large flat glass surfaces. The systems are designed so that both individual pieces and large series of glass, stone and metal can be processed quickly, easily and productively. The combination of high-quality components, technical features, compact design and low price level make the ImageBlast series blasting systems an attractive alternative for finishing companies with the highest quality requirements. As the crowning glory of our ImageBlast system, these systems are particularly suitable for use with our patented, photo-technical sandblasting films such as R-Series, UltraPro and RapidMask. Create your own sandblast surfaces quickly and easily! All models offer a wide range of options and can be individually adapted to your requirements. A demonstration unit of the HARKE ImageBlast 1600A is installed at our site in Bochum and can be viewed and tested at any time!Standard Key Features: Entry and Exit conveyor with 200cm each (length is adjustable if necessary)Robust construction allows to load machine with pieces up to 40mm thicknessSoft brushes on the conveyor structure to avoid scratchesEntry sensor that al lows to place piece on every position of the conveyorExit sensorMoving parts like guns movement system is instal led outside the blasting areaLaser cutted high quality body plates2 large windows in front door made of 3-layer safety glassTwo holes in front door for manual sandblastingFiltration installed inside machine body, no external filtrationHigh quality pulse jet cleaning and filter systemFilter system with 4 filtration cartridgesConveyer cleaning systemConveyer saving system (easy to replace)Up to 3x 8mm sandblasting guns1x manual sandblasting guns (8mm) with external foot pedal1x airjet cleaning pistolSIEMENS touchscreen PLC (with 1 program and 20 zones)Adjustable setting: x/y coordinates, pressure, nozzle speed, nozzle moves, conveyor steps, vibration, light and exhaustionOnboard Diagnostic system2 inverterSIM-card for information savingTop light inside cabinetVibration system for constant abrasive flowAbrasive filtration sieve Available Upgrades: Program upgrade to 20 or 100 programs (each program with 20 zones)Shading system (automatically adjustable sandblast pressure du ring movement for creating shading effects)Third sandblasting gunAuxiliary external exhauster

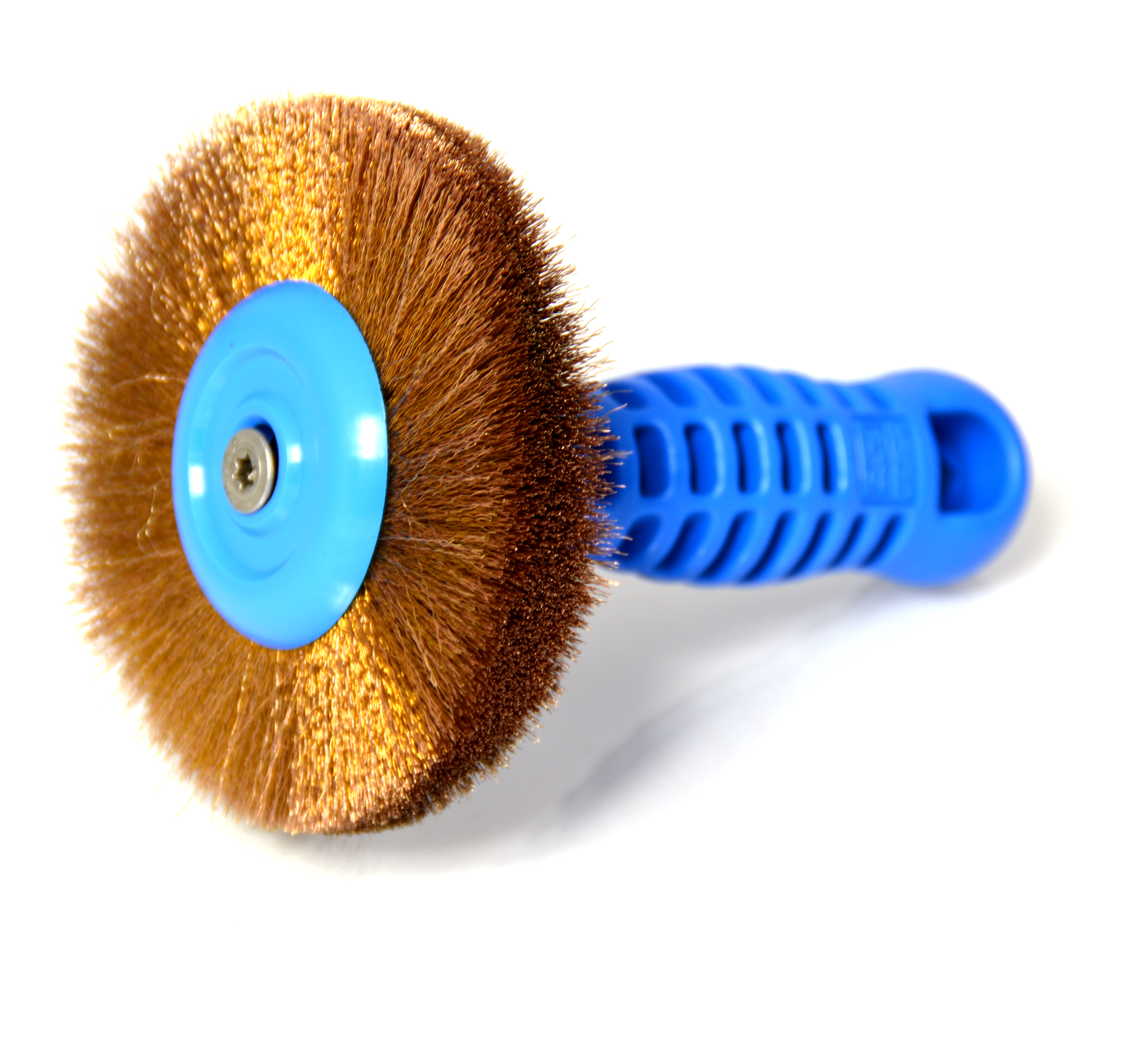

BubbleEx wire wheel is a handy tool for easy removal of air pockets between the film and the substrate, e.g. glass, stone, wood, metal, etc. With the help of the 0.06 mm wire bristles, the tool perforates the membrane, allowing the air to escape.

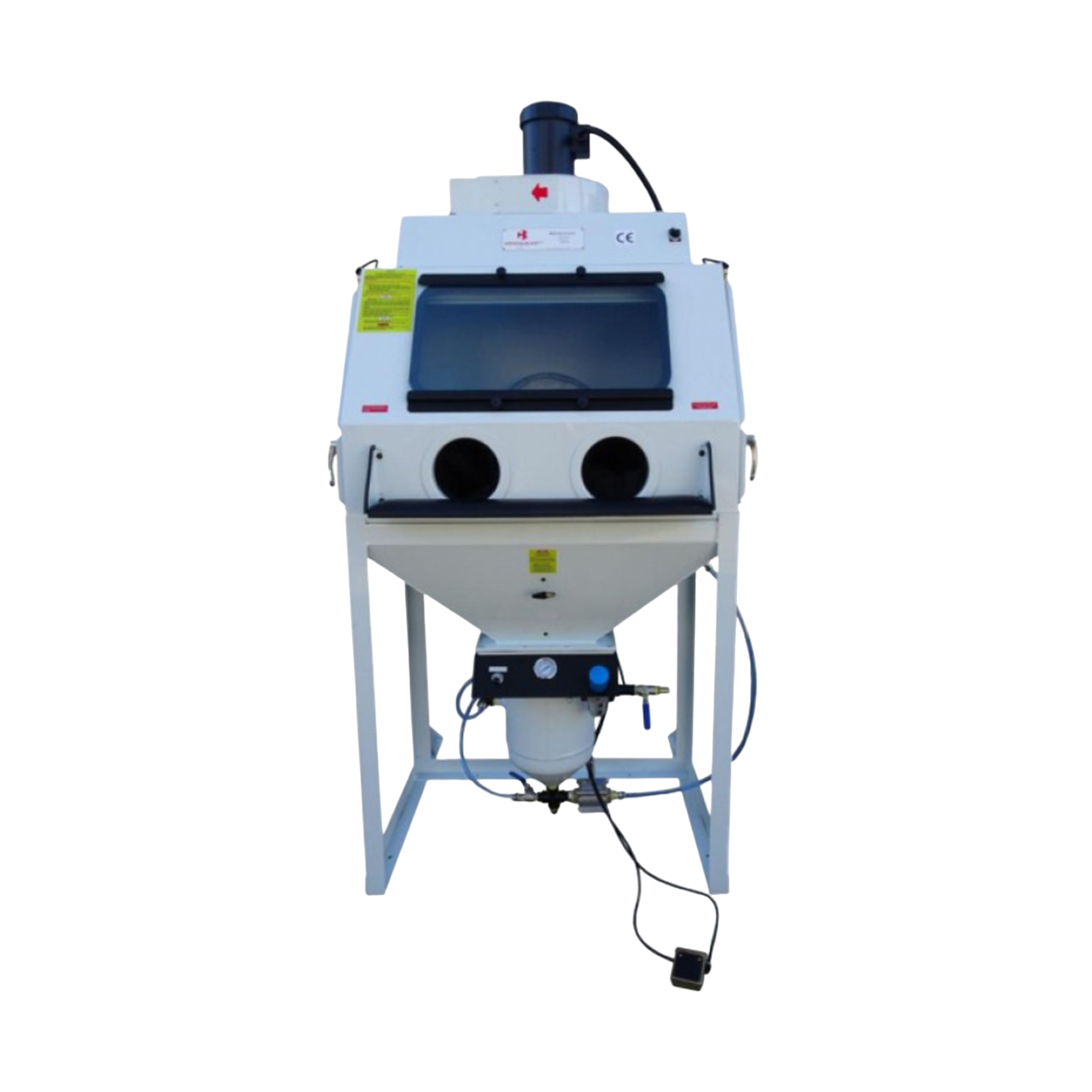

The CrystalBlast Pro X2 sandblasting cabinet convinces with its technical features, high-quality construction and compact design at an attractive price-performance ratio. The system is designed in such a way that both individual pieces and large-volume productions of glass, stone and metal can be completed quickly, easily and precisely. The CrystalBlast Pro X2 is therefore an attractive alternative for processing companies with the highest quality requirements.   The CrystalBlast Pro X2 is designed to eliminate the need for maintenance and its ease of operation will provide many successful years of sandblasting. In addition, the sandblasting cabinet features enhanced dust filtration with a semi-automatic pneumatic filter cleaning cycle.   Advantages:   Semi-automatic pneumatic vibrato dust collectorNew, user-friendly dashboard with compressed air regulator and switch for dust collectorInside Blow-Off GunAccess doors left and right   Large double cartridge filter systemOn-off switchLED lightingPadded armrest22,5l pressure pot with access portRemovable patented separator reclaimerDurable high pressure valve for abrasive flow control3/32 inch (2mm) nozzle with quick connector3/8 inch (9mm) PU blast hoseWith foot pedal, for starting the blasting process

The Dmax™ black dye ink for high-quality exposure templates has a special UV light-blocking formulation and is available for refillable systems such as refill cartridges and Eco-Tank printers. With a density of almost 5.0, there is no comparable black dye ink on the market.The advantage of Dmax™ black dye ink is apparent in the deep black and clean print results on your film positives or negatives. Use Dmax™ dye ink together with FilmMaker 10 RIP software to take advantage of a single, multiple or full black refill system.Dmax™ black dye ink is available for many Epson printer models in convenient 0.5L and 1.0L bottles.

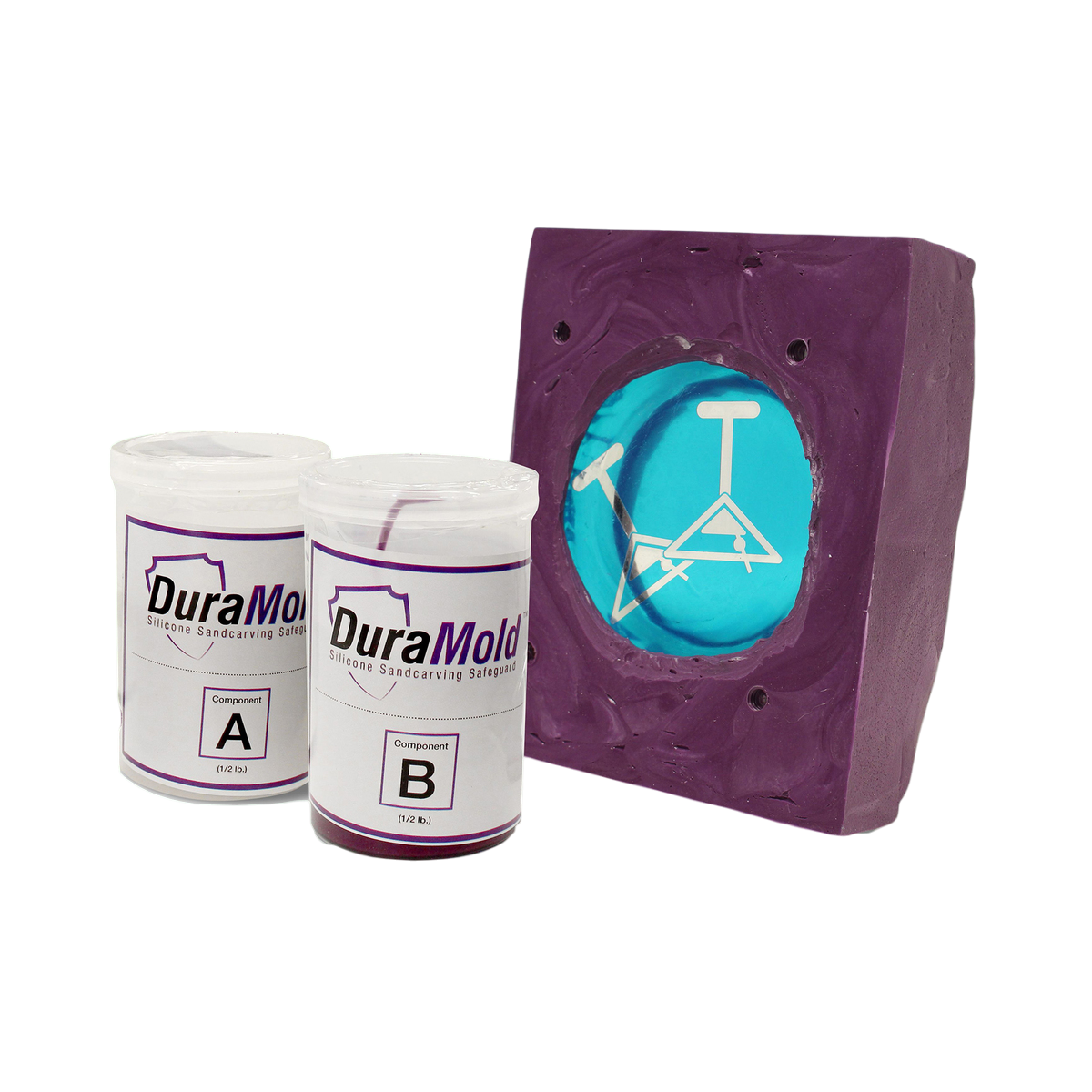

DuraMold A+B putty can be customized to the shape, size and material of most unique substrates. DuraMold enables thousands of sandblasting operations and creates an efficient work environment. DuraMold in conjunction with the Tapeless Port Insert is the optimal solution for high volume jobs. Benefits: Contains DuraMold putty, component A and B Customizable Perfect for mass production Eliminates taping

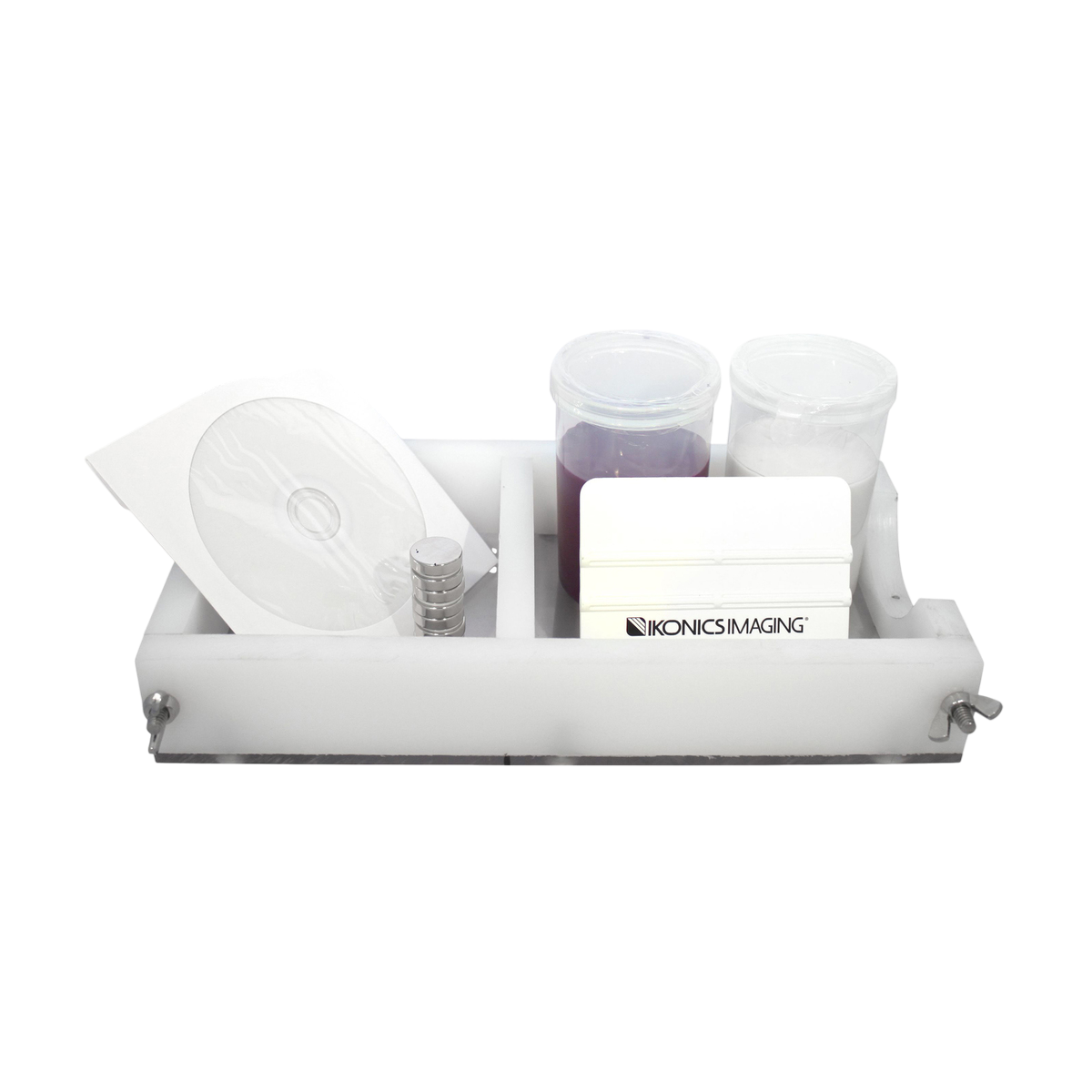

DuraMold Starter Kit is customizable to the shape, size and material of most unique substrates. The kit enables thousands of sandblasts and creates an efficient working environment. DuraMold Starter Kit in conjunction with the mobile blast frame is the optimal solution for high production jobs. The DuraMold Starter Kit contains all the tools you need to get started with efficient production right away. Components: DuraMold puttyDVD guide Squeegee Button magnets Rubber spacer Reusable mold box

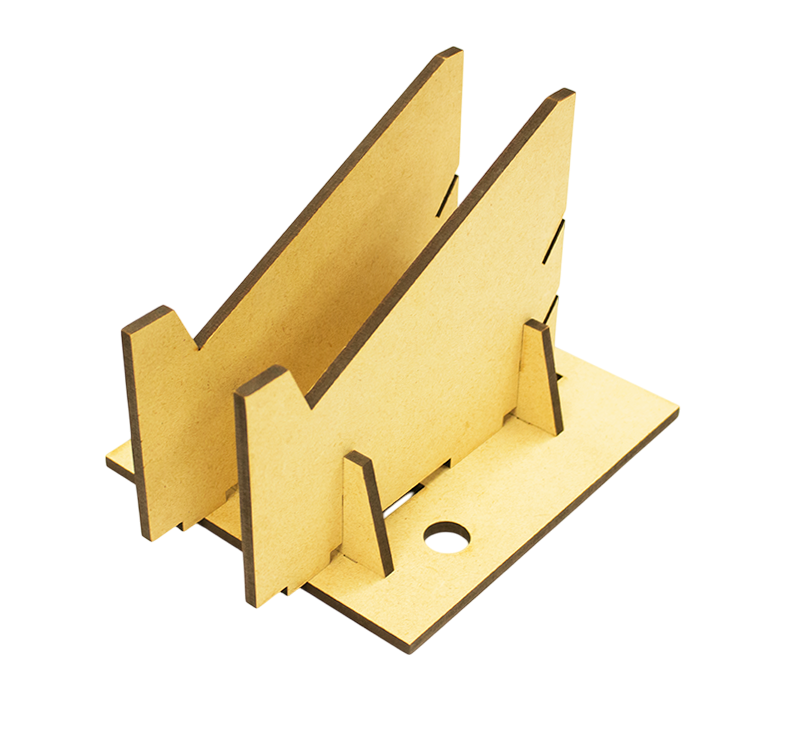

EasyFix stand was developed for a quick and wrinkle-free application of photoresists. It is perfect to use for rounded objects like glasses, mugs, bottles and other materials with a minimum width of 48mm.

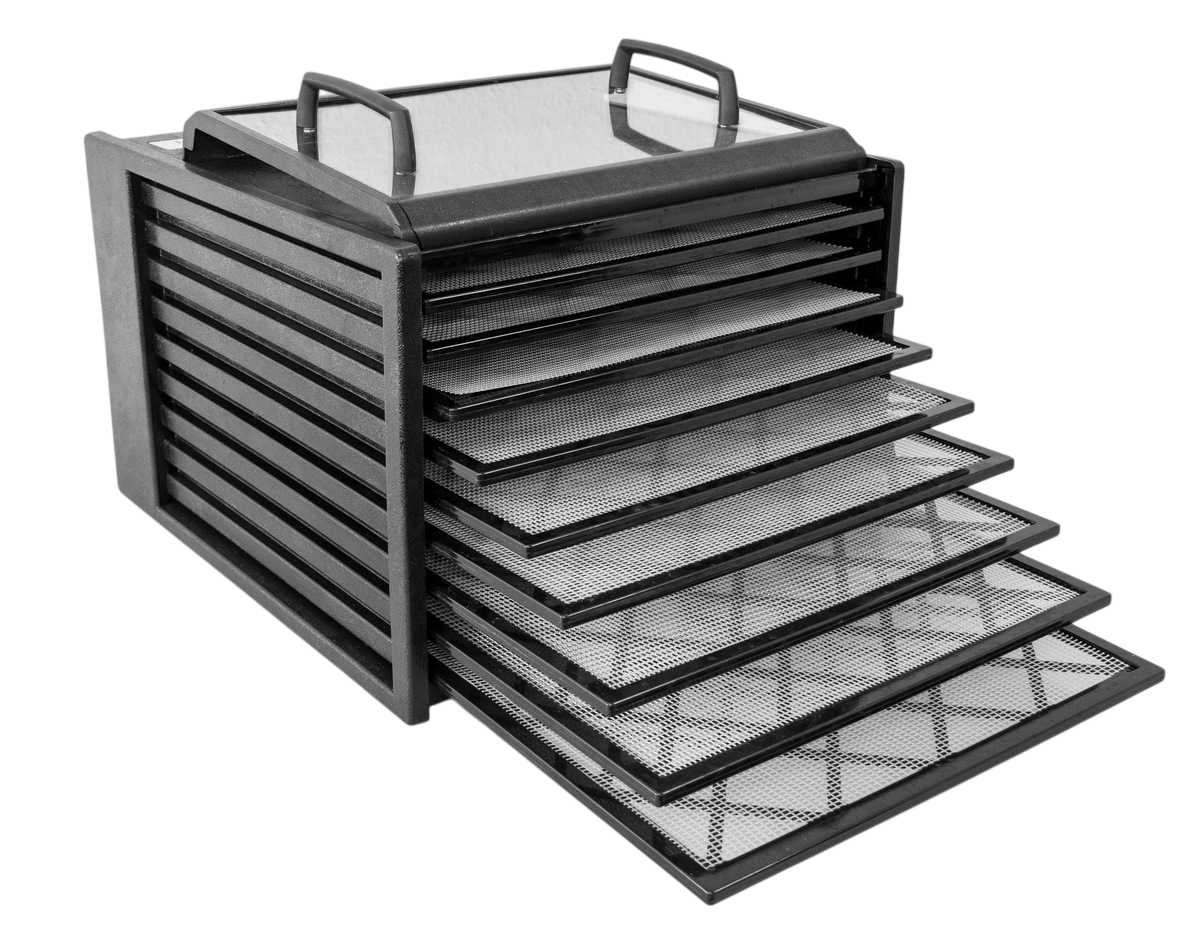

Our compact film dryer with 9 compartments, each 35cm x 35cm, offers a total drying area of 1.1m² for fast drying of washed-out sandblasting film. Advantages: Drying area per compartment: 35cm x 35cm Number of compartments: 9 Heating: 600 watts, manually adjustable between 30°C - 68°C Electrical connection: 240 V Weight: 10 kg Dimensions: 42cm x 49cm x 32cm (W/D/H)

FilmMaker 10 RIP software offers a comprehensive toolset for inkjet screen printing. The combination of accurate screen printing, optimal density levels, ease of use and a job management interface optimise your production workflow, saving you time and money while producing high quality screen prints on the most commonly used inkjet printers.FilmMaker 10 supports printers such as: Canon: iPF510, iPF605, iPF610, iPF650, iPF655, iPF670, iPF680, LP17 Epson: 1400, 1410, 1900, 3800, 3880, 4400, 4450, 4800, 4880, 4900, Artisan 1430, D120, SP-1400, SP-1410, SP-1500W, SP-2200, SP-2880, R1800, R1900, R2000, R2400, R3000, SC-1520, SC-3000, SC-P400, SC-P600, SC-P800, SC-P5000, Stylus 1100, Stylus Pro 4000, WF-7015, WF-70xx, WF-75xx Ricoh: GX-7000, GXe-3300, GXe-7700, SG 3110, SG 7100Benefits:Windows® 11, 10, 8, 7 supportLarge driver database of printer manufacturers and brand models (Epson®, Canon™, Roland®, Mimaki® and more).Ink density wizard to determine the optimal amount of ink/filmsNearly unlimited file format support; png/svg/bmp/gif/jpg/tif/psd/eps/ai/pdfDrag and drop file supportInternational language support (Unicode)Special halftone functionsMultiple black channel support (not with EPSON L1300)Print preview in RIP to avoid production errorsA 15-day trial version of the FilmMaker 10 DTP Plus RIP software can be downloaded from the following link:https://updater.cadlink.com/OnlineTrialDownloaders/download.php?params=aVZkaDFKNmhleDNqdWdaVUNiVkYyQT09 To activate the full version of the FimMaker 10 Rip software, use the purchased license code.

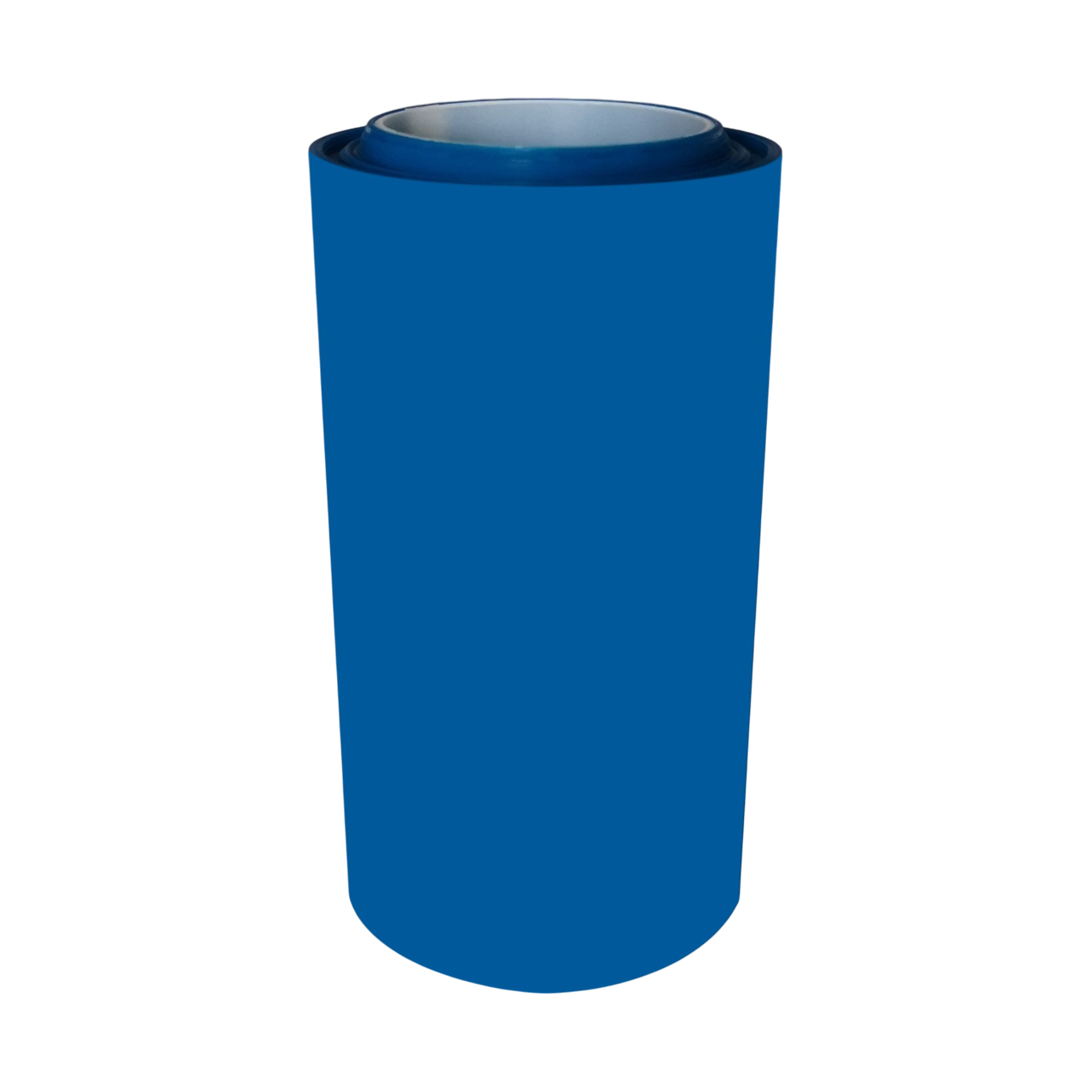

I-HE was specially developed for the application "PowderBlasting" (micro-abrasive material removal by sandblasting) and for the processing of technical glasses and ceramics. The photolithographic blast film I-HE is hot laminated onto the substrate with a dry resist laminator and the exposure takes place as soon as the material has cooled down to room temperature. Unlike other photoresist materials, I-HE is not developed with alkaline solutions, but with water. Chemical additives are neither required for development, nor for stripping.Fields of application:Microperforation of thin glass (wafer) and technical ceramicsMEMS packagingLens packagingProduction of Lab on Chip systemsEngraving of identification numbers and company logosTargeted surface structuring of metalRoll size: 0.21 x 50mI-HE is available in rolls in 100µ.

I-HE was specially developed for the application "PowderBlasting" (micro-abrasive material removal by sandblasting) and for the processing of technical glasses and ceramics. The photolithographic blast film I-HE is hot laminated onto the substrate with a dry resist laminator and the exposure takes place as soon as the material has cooled down to room temperature. Unlike other photoresist materials, I-HE is not developed with alkaline solutions, but with water. Chemical additives are neither required for development, nor for stripping.Fields of application:Microperforation of thin glass (wafer) and technical ceramicsMEMS packagingLens packagingProduction of Lab on Chip systemsEngraving of identification numbers and company logosTargeted surface structuring of metalRoll size: 0.61 x 50mI-HE is available in rolls in 75µ.

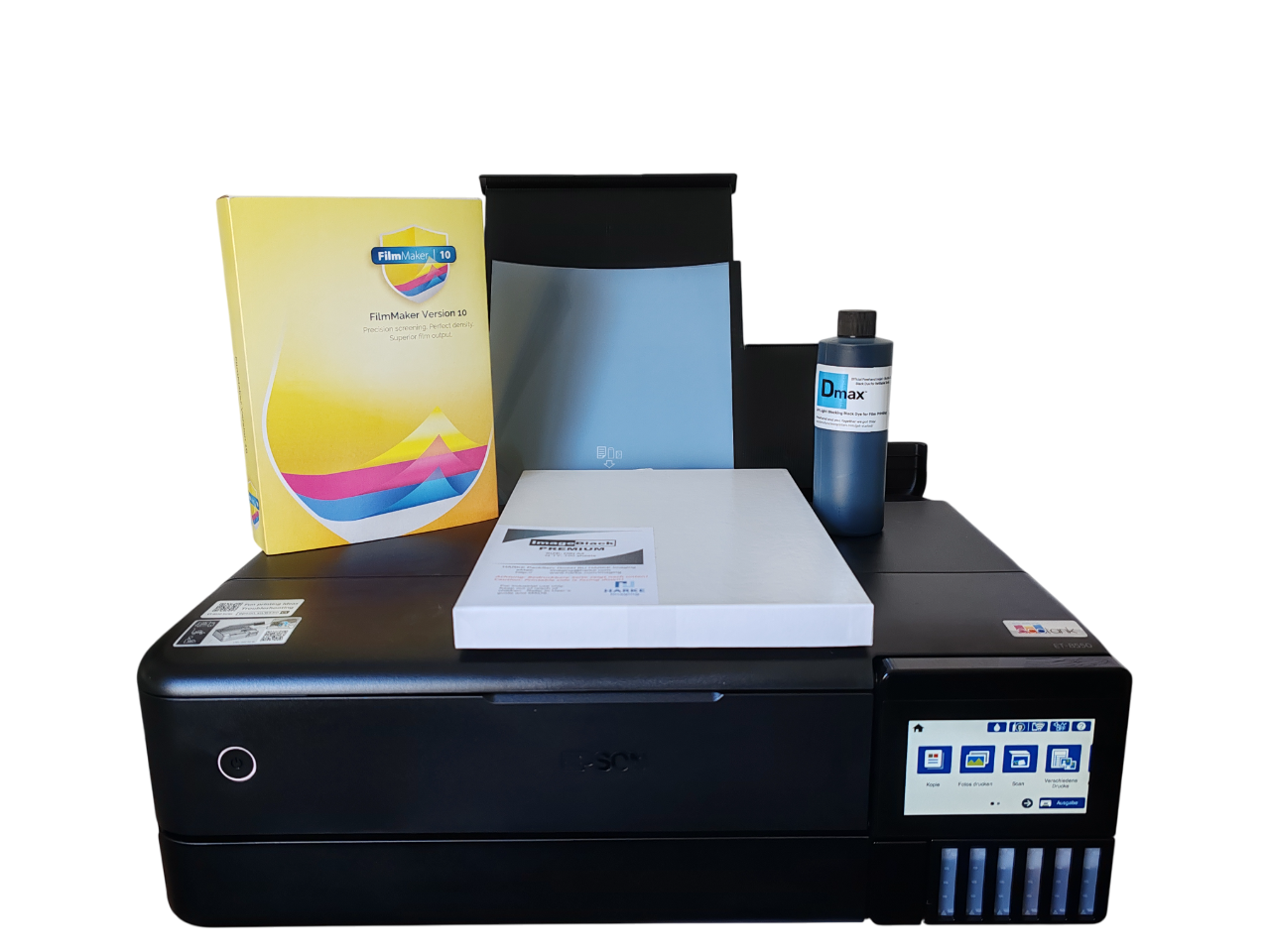

With the ImageBlack Set ET-8550, creating professional exposure templates is now much easier and more efficient. In combination with our Rip software, the UV-proof black ink and the specially developed "ImageBlack Premium" exposure films, this system offers the highest quality components to be able to create accurate, light-proof exposure templates in the shortest possible time.The FilmMaker Rip software acts as a printer driver and enables precise control of the amount of ink dispensed. Print high-quality exposure templates for screen printing, pad printing, flexographic printing and of course for our ImageBlast sandblasting films quickly and easily! At the same time, FilmMaker Rip software offers an automatic screening of halftones. With just one click, you can get impressive halftone screens according to your requirements.Components: EPSON EcoTank Printer ET-8550FilmMaker 10 Rip SoftwareLicense Dmax Black Dye Ink (500ml) + Universal Filler CapImageBlack Premium A4 (100 sheets)Benefits:10.9 cm large color touch screen Interfaces: USB 2.0, network, WLAN, USB host, Wi-Fi Direct, Apple AirPrint Printer can still be used as a professional photo color printer, copier and scanner Consistently high print speed thanks to Micro Piezo Heat-Free Technology Max. resolution: 5760x1440 dpi Max. film format: A3+ Double-sided printing (only on paper and A4 format) Special UV-dense black dye ink Two black ink tanks Low fill level limit, i.e. tanks can be used to the last drop Use of the black ink tank regardless of the condition of the other inks Free updates Fast service Compatible with Windows 7/8/10/11 The components of this set system (except printer) are also available individually! So if you already have a suitable EPSON inkjet printer, you can upgrade it at any time. We also offer sets and individual components for other EPSON models. Get in touch with us! Free trial version of FilmMaker Rip software is available at the following link: https://updater.cadlink.com/OnlineTrialDownloaders/download.php?params=aVZkaDFKNmhleDNqdWdaVUNiVkYyQT09

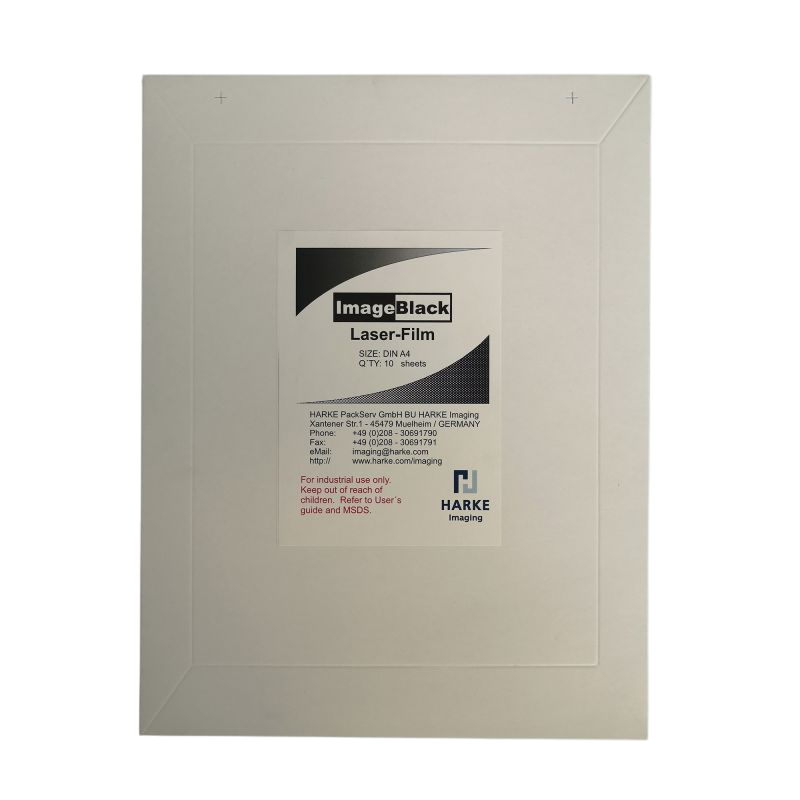

ImageBlack Laser is a matt-coated PET film that was originally developed specifically for positive film production. The film has a copyable, antistatic surface with uniform print quality and toner coverage. ImageBlack Laser can be used on all toner-based printing systems, as well as on all character plotters and for hand lettering with commercially available pens. ImageBlack Laser is available in material thickness 95µ in A4 and A3 sheets.

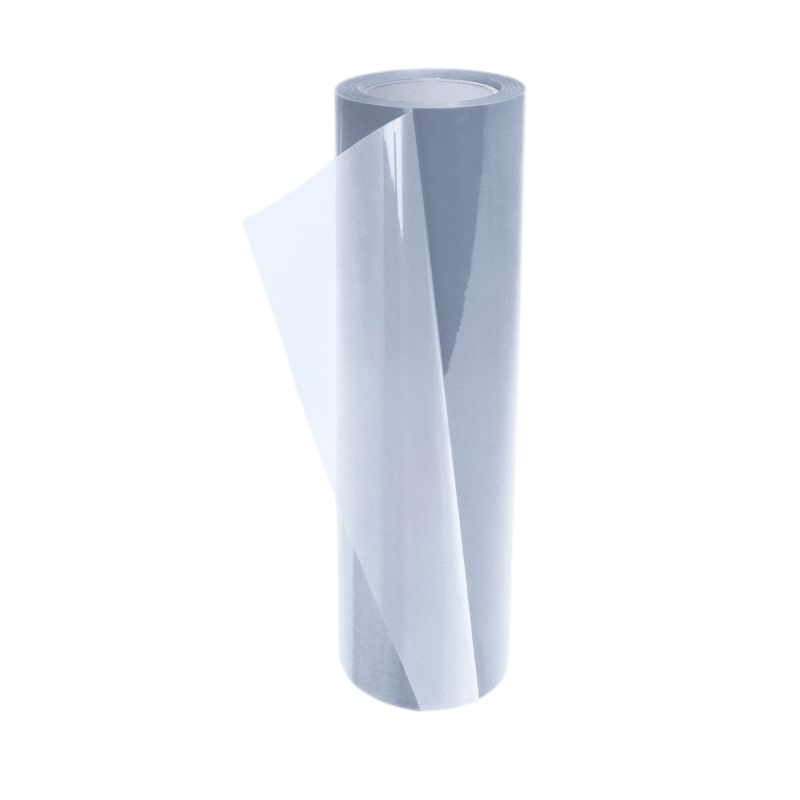

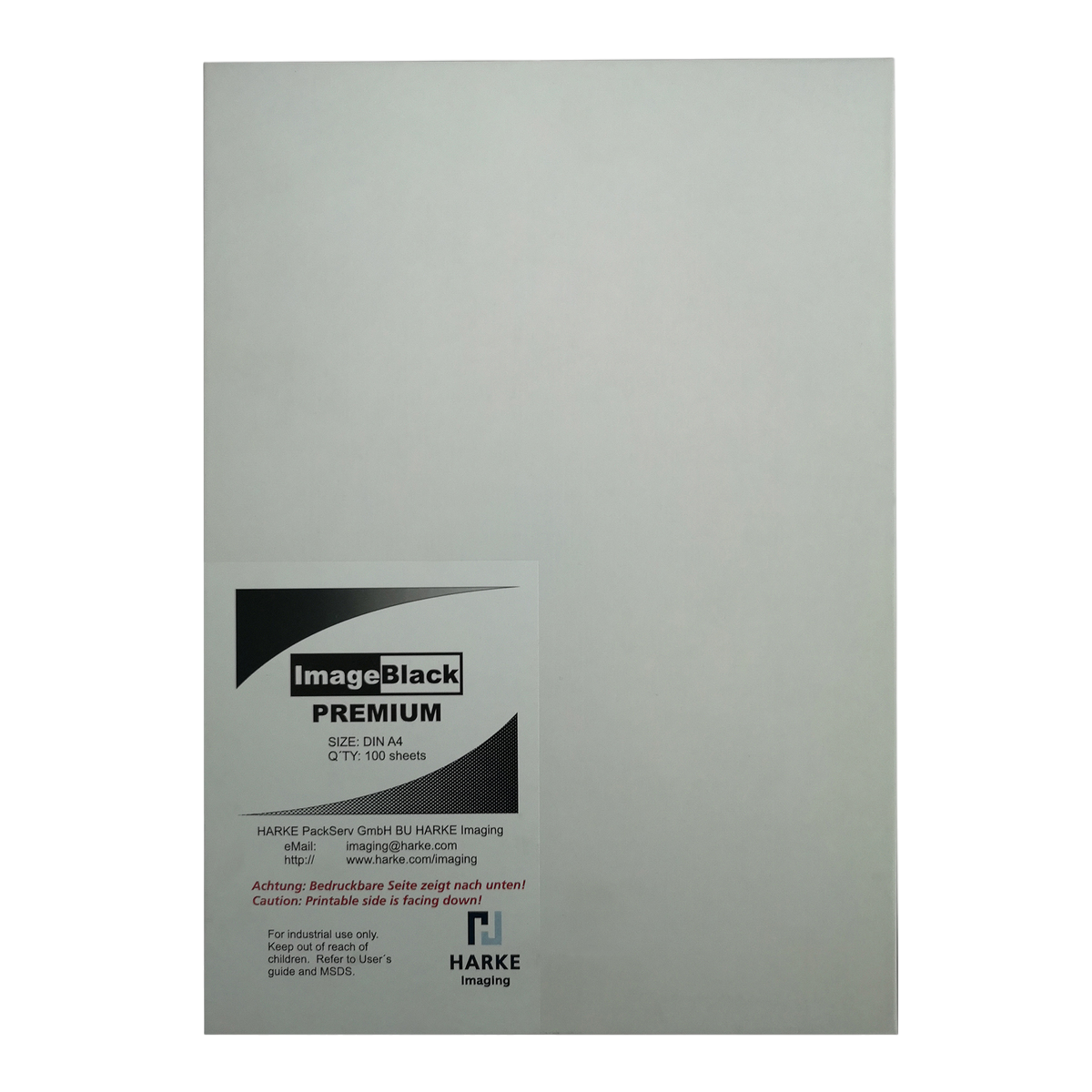

ImageBlack Premium with anti-curling coating is a transparent, polyester-based, printable film for screen and offset printing. (Also suitable for posters and CAD applications). The strong film structure and the special coating reduce the curling of the sheets in the printer. The film is also better recognized and fed by the printer. ImageBlack Premium is a universally applicable inkjet film that is ideally suited for imaging all photochemical stencil systems. This means that both screen printing emulsions and pad printing clichés can be exposed with this film. Benefits: Ink compatibility: Color, pigment and chrome inks Water resistance: Yes Dmax value: up to 4.0 Dmin value: .13 Color printing: Yes ImageBlack Premium is available in material thickness 165µ in rolls and sheets.

ImageBlack Premium with anti-curling coating is a transparent, polyester-based, printable film for screen and offset printing. (Also suitable for posters and CAD applications). The strong film structure and the special coating reduce the curling of the sheets in the printer. The film is also better recognized and fed by the printer. ImageBlack Premium is a universally applicable inkjet film that is ideally suited for imaging all photochemical stencil systems. This means that both screen printing emulsions and pad printing clichés can be exposed with this film. Benefits: Ink compatibility: Color, pigment and chrome inks Water resistance: Yes Dmax value: up to 4.0 Dmin value: .13 Color printing: Yes ImageBlack Premium is available in rolls and sheets in 165µ.

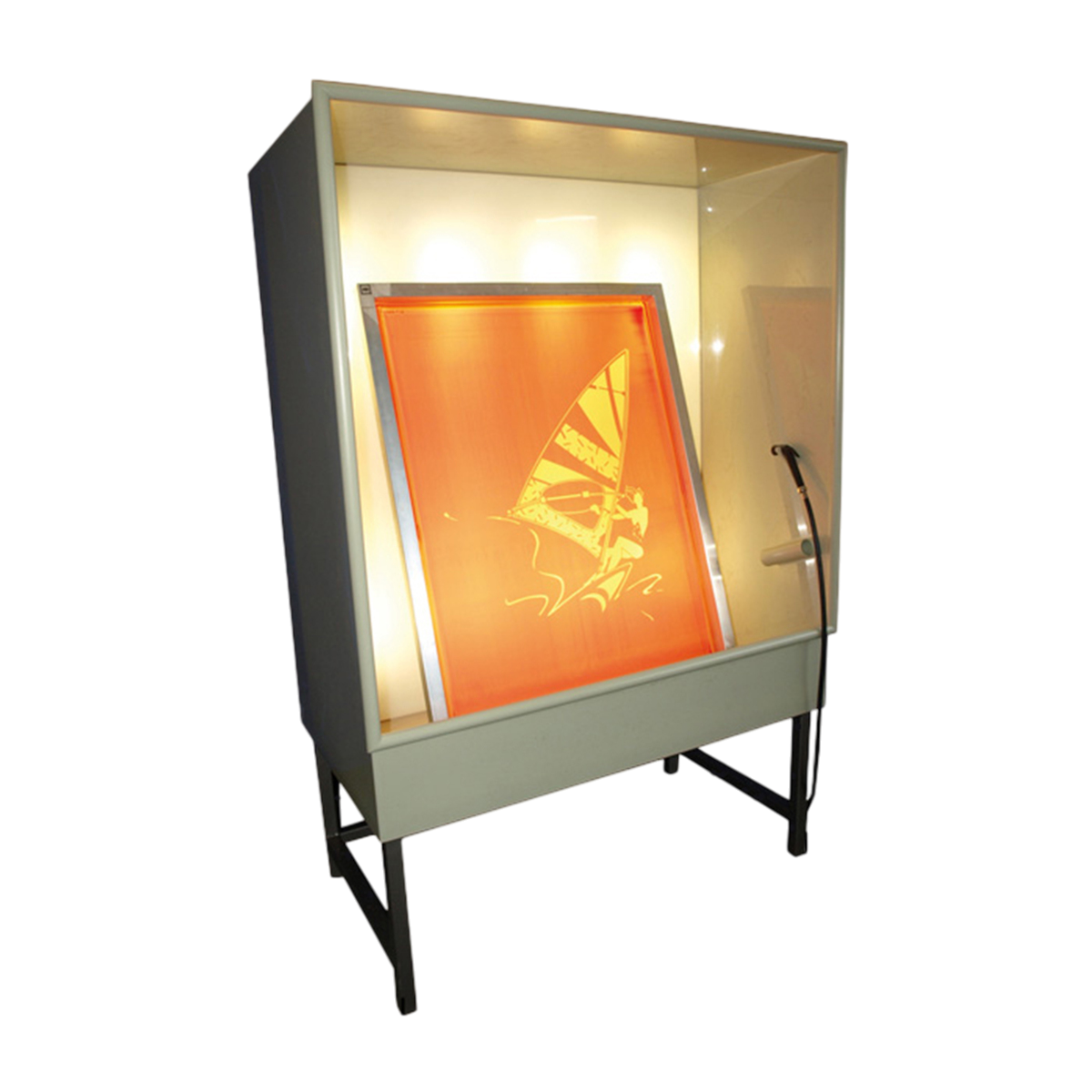

The ImageBlast large-format wash out boot (160 x 260 cm) is made entirely of polypropylene. It has an open tubular steel frame, a milky-transparent back wall, which is provided for rear lighting, and a pressure hand shower with a hose. Metal rails are embedded in the back wall for fixing the film with magnets.Components:Made entirely of polypropyleneOptionally with full-surface illumination from the rear sidePressure hand shower with 3 m hoseTubular steel underframe suitable for inserting a waste water collection tankAlso available with covered underframeUnderframe can be dismantled / removed (height minus 50 cm)Technical specifications:Max. film size approx: 160 x 260 cmTotal W x D x H approx: 300 x 76 x 220 cmConnection voltage: 230V / 50 HzConnected load: 1kW

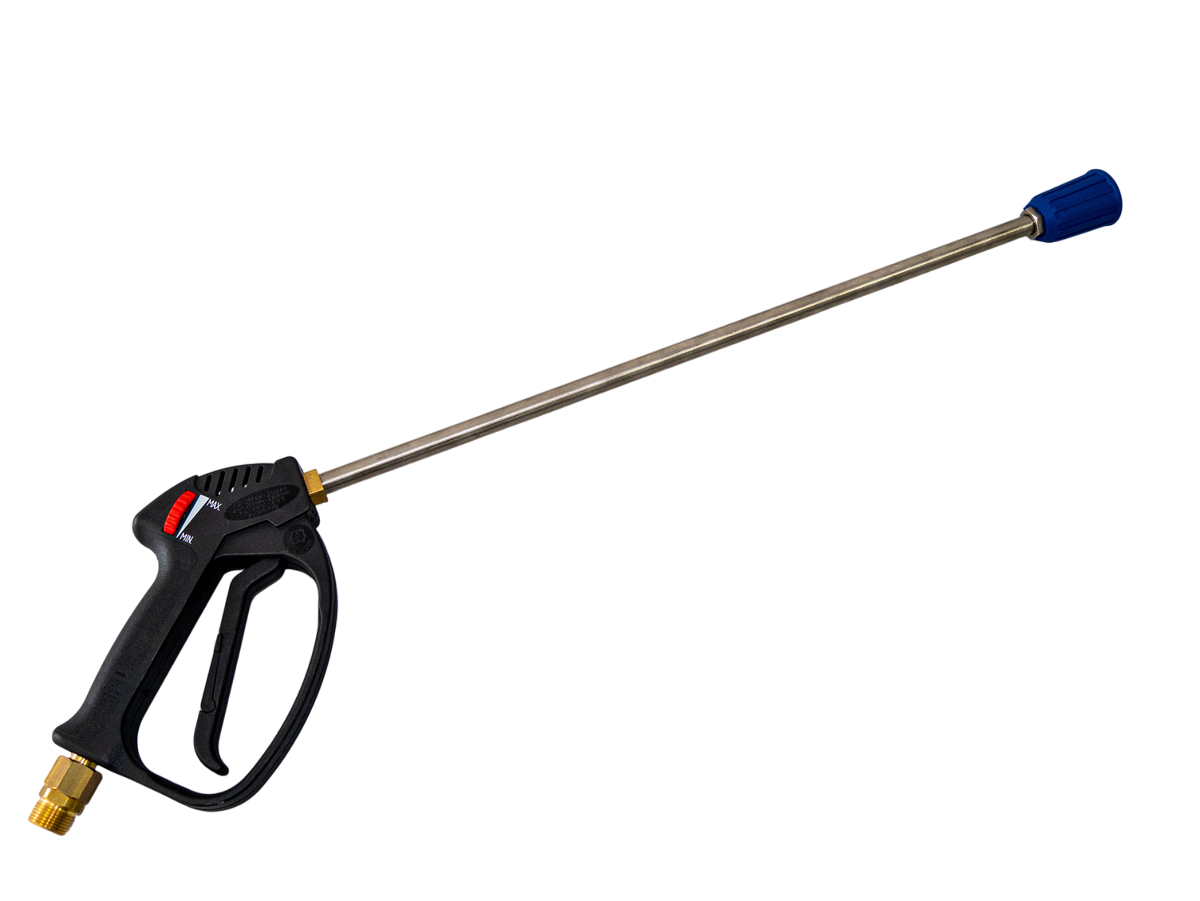

The ImageJet is an adjustable wash-out gun, which was specially designed and manufactured for the development of R3/ R5, UltraPro, ProRed, ProSuper, UltraPeel and Ultra Vinyl films. The ImageJet can be used in combination with most commercially available high-pressure cleaners as well as a garden hose.

LaserBlast (green) combines the convenience and precision of your laser engraver with beautifully deep etched engravings done by sandblasting. LaserBlast can be applied on nearly all brittle materials like glass, stone, ceramics and many more without leaving any residue. It is ideal for upgrading simple laser engravings by sandblasting. Benefits:100% free of PVCGreat for color Paint fill applications Fast to laserStrongly self adhesive / Ideal for flat surfacesEasy to peel offThickness = 100μ (4 MIL)Can be cut with laser and is quick to rasterLaserBlast (green) is available in rolls in 100µ .

LaserBlast (THICK) is specifically designed for laser engravers who require a deeper engraving or a stronger adhesive for their stencils. Our LaserBlast (THICK) film offers a significant advantage with its thicker composition and enhanced adhesive, making it the ideal choice for a variety of surfaces including stone, brick, crystal, wine bottles, powder coated metal, ceramics, wood and a variety of other substrates.Features:Fast and simple clean up Quick laser burn Easy to colorfill after sandblasting Conforms smoothly to surfaces without wrinkling Thick, durable mask for outstanding depth and detail Enhanced adhesive High contrast on substrates No PVC LaserBlast (THICK) ist available in rolls in 150µ.

LaserBlast+ (orange) combines the convenience and precision of your laser engraver with beautifully deep etched engravings done by sandblasting. LaserBlast+ can be applied on nearly all brittle materials like glass, stone, ceramics and many more without leaving any residue. It is ideal for upgrading simple laser engravings by sandblasting. Compared to the LaserBlast (green) this new LaserBlast+ is equipped with an additional soft protection layer for an easy handling.Benefits:Dimensional stability aids in application especially when applying with the carrier removed.Slight color change after application. Helps to detect air bubbles or other potential sources of defects before blastingStretchy enough to wrap but is significantly less elastic than other mask material, allowing it to maintain its shape when wrappedThe adhesive does not leave residue on the substratePeels significantly better than other laser mask material, making it great for color fillingThe orange contrasts better with most substrates particularly darker colored substrates compared to competitive productsThe resolution of the orange is much better than competitive productsDurability is better than other laser mask materials, allowing for a deeper blastLaserBlast+ (orange) is available in rolls in 100µ :

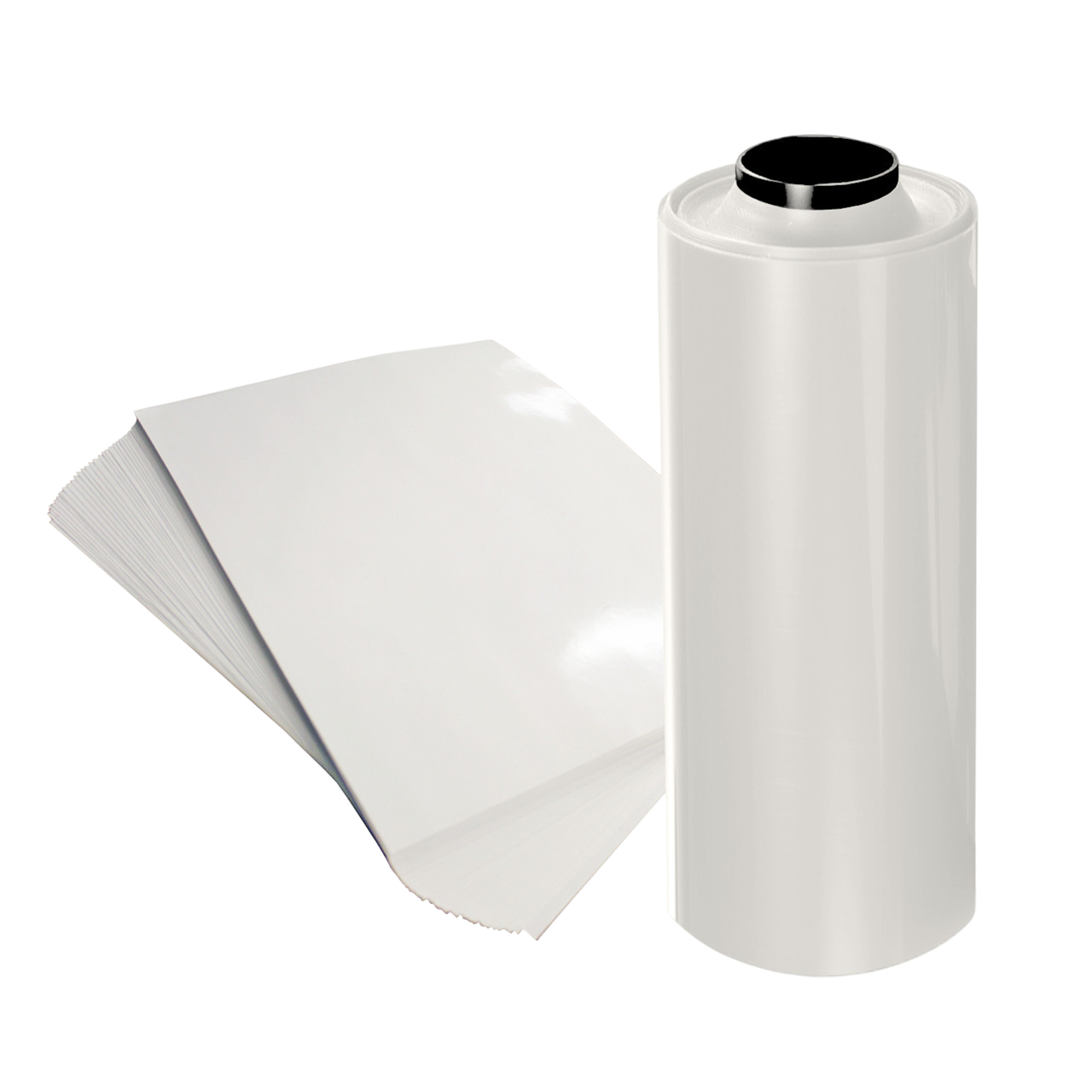

MaskSaver is a transparent PET film coated on one side with silicone, also known as a dehesive film or release film. MaskSaver is mainly used as a protective film for our self-adhesive sandblasting masks such as UltraPro, R3 / R5, Ultrapeel, MicroMask and protects them from moisture, fingerprints, dirt and dust. MaskSaver is available in sheets and rolls.
